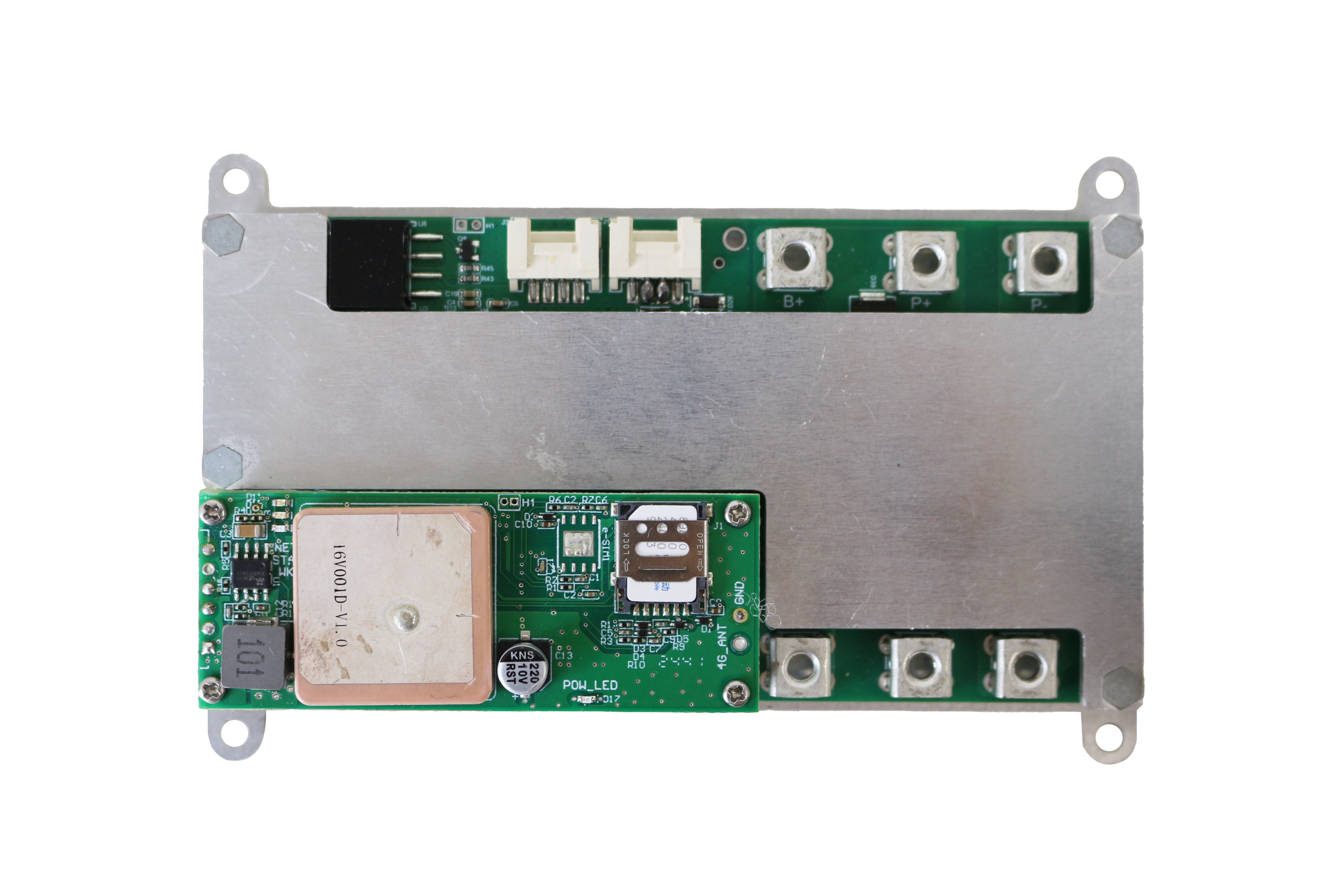

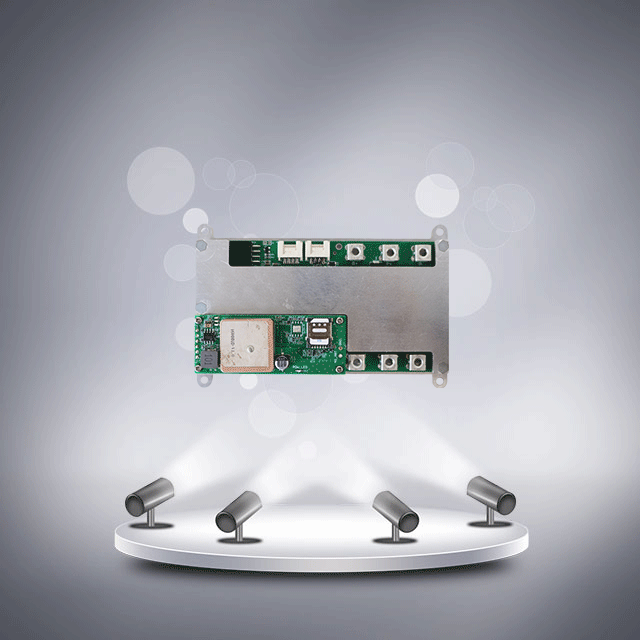

 | Supported Series Cells: 10-15S Battery Type: NCM / LFP Charging/Dischargeing Port: Same / Different Charging Current: 20A Discharging Current: 20A Balancing Current: 90±10mA (passive) Communication Protocols: RS-485/SIF/BT/4G Dimensions(mm): 115*68*14 Weight (g): 150 | -
High-precision SoC algorithm, accurate remaining capacity measurement -
Multi-communication with isolation, RS-485/SIF/BT -
Triple protection – software algorithm+hardware AFE+three-terminal fuse -
Communication Wake-up supported -
Scalable Active Balancing Module -
Battery low-temperature heating supported (external module) -
External BT or 4G module, remote upgrade supported | Electric Two-wheeler / Civilian Battery Swap |
